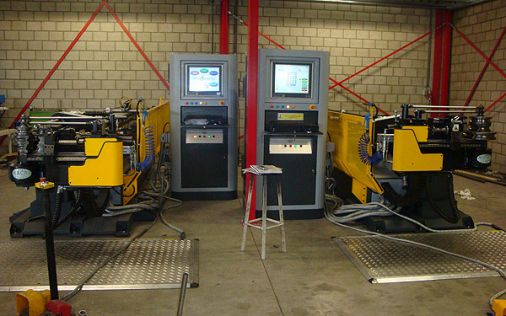

PROVAR 6-45 U-D Tube bending machines PROVAR 6-45 U-D
The PROVAR 6-45 U-D (Series 45) is a fully automatic, 6 axes tube bending machine: bending (Y axis), advancement (X axis) and rotation (Z axis). The PROVAR 6-45 U-D can bend tubes up to 45 mm in diameter and lateral movement of the positioner and of the mandrel (axes B1 and B2) and up-down movement of the head (axis A).
The PROVAR 6-45 U-D can bend tubes up to 45 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.
The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
The PROVAR 6-45 U-D can bend tubes up to 45 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.
The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
| Model | PROVAR 6-45 U-D |
| Axes | 6 axes (Y, X, Z, B1, B2 and A) |
| Tube movement | - Bending (Y axis) - Advancement (X axis) - Rotation (Z axis) - Lateral movement of the positioner (axis B1) - Lateral movement of the mandrel (axis B2) - Up-down movement of the head (axis A) |
| Diameter of tube to be bent | Up to 65 mm |

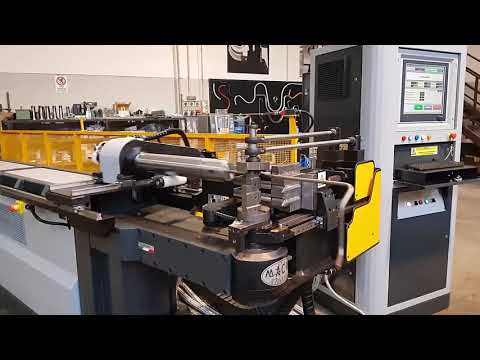

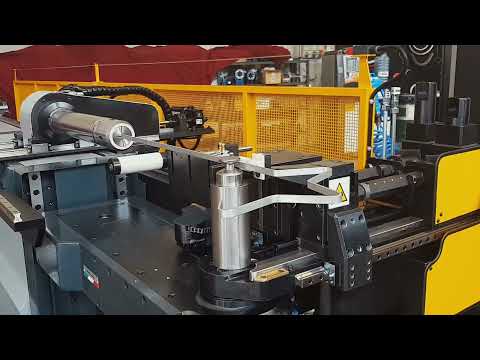

Video
