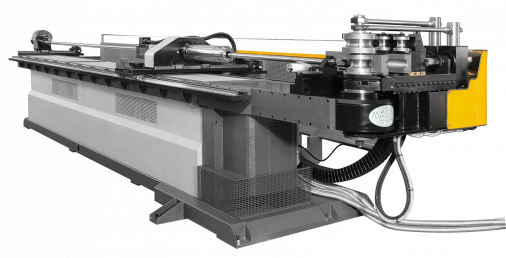

PROVAR 5-90 U-D Tube bending machines PROVAR 5-90 U-D
The PROVAR 5-90 U-D (Series 90) is a fully automatic, 5 axes tube bending machine: bending (Y axis), advancement (X axis) and rotation (Z axis). The PROVAR 5-90 U-D can bend tubes up to 90 mm in diameter and lateral movement of the positioner and the mandrel (axes B1 and B2).
The PROVAR 5-90 U-D can bend tubes up to 90 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.
The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
The PROVAR 5-90 U-D can bend tubes up to 90 mm in diameter and has two levels of equipment per fixed and variable radius or two different fixed radii.
The following are fitted as standard:
- heat exchanger;
- early mandrel extraction;
- automatic mandrel lubrication.
| Model | PROVAR 5-90 U-D |
| Axes | 5 axes (Y, X, Z, B1 and B2) |
| Tube movement | - Bending (Y axis) - Advancement (X axis) - Rotation(Z axis) - Lateral movement of the positioner (axis B1) - Lateral movement of the mandrel (axis B2) |
| Diameter of tube to be bent | Up to 90 mm |
